Plasma technology

HTT Plasma Technology

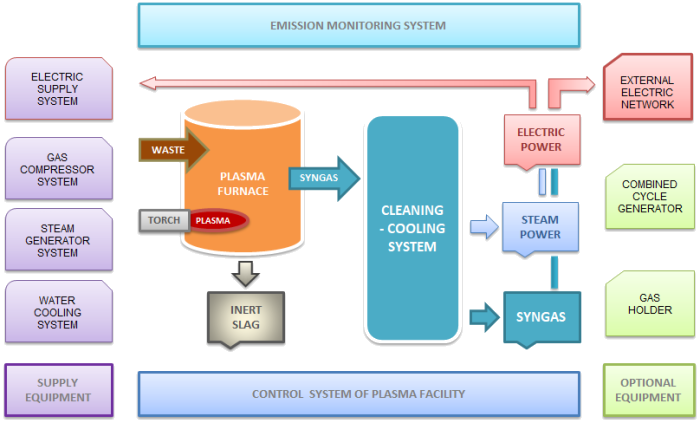

Plasma Waste Treatment Process

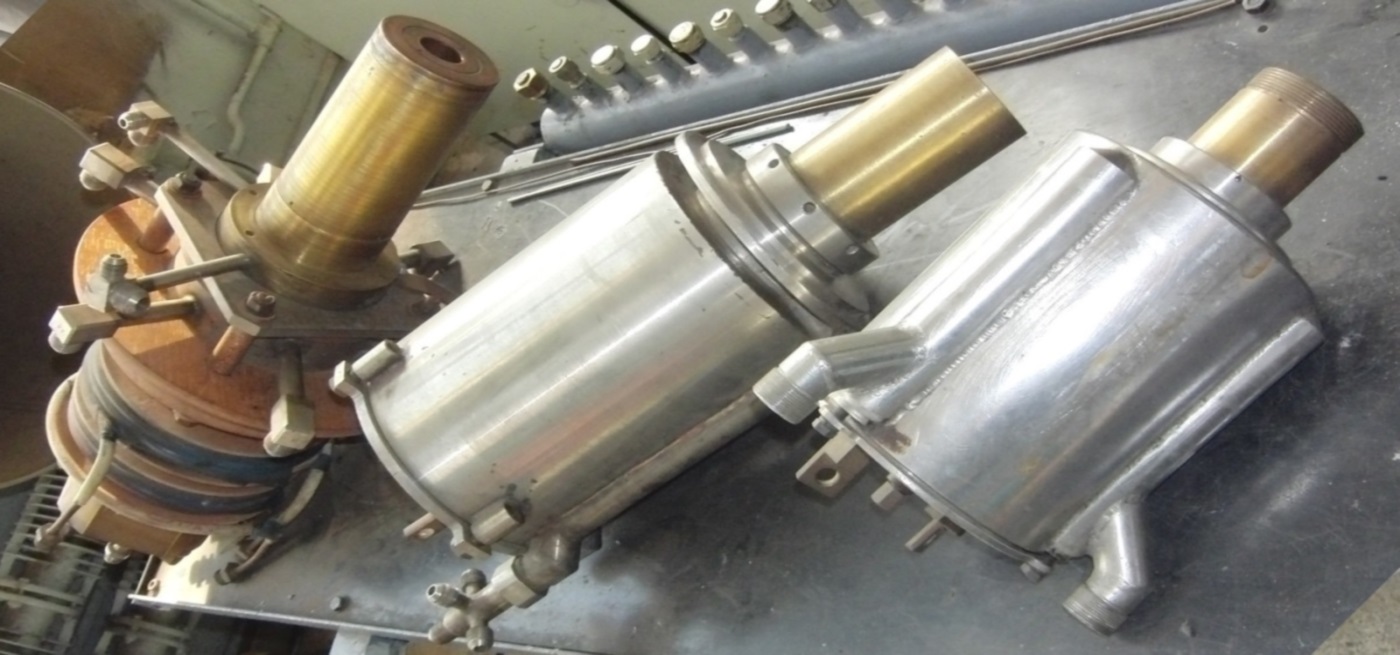

Plasma pyrolysis is used to safely treat various types of waste in a furnace or in a reactor. The plasma pyrolysis process is the thermal degradation of organic substance in the absence of air (oxygen) by means of plasma energy. As a result of this process occur dissociation molecules of organic matter (waste) and the formation of syngas and inert inorganic residue (slag). The main element of plasma technology is a plasma arc torch. A plasma torch uses gas or steam and metal electrodes (copper, tungsten, hafnium, zirconium, etc.) to create plasma, which is an ionized gas. The temperature of the plasma torch can be in the range
3 000-6 000°C; at these temperatures molecular bonds break down through a process called molecular dissociation, to create basic elements of materials – atoms.
Plasma processing of waste is an ecologically clean process. The lack of oxygen and high temperature in a reactor prevent the main elements of gas from forming toxic compounds, such as furans, dioxins, NOx, or sulfur dioxide. Extensive filtration removes inorganic residue (ash) and gaseous pollutants (NO, HCl, H2S, etc.) and allows the production of ecologically clean synthetic gas. The gaseous compounds do not contain any phenols or complex hydrocarbons. The circulating water in these filtering systems has removed the hazardous substances and must be cleaned.
Synthetic gas it is used basically for reception of electric energy. Gaseous pollutants are converted to valuable chemical products. Inert slag could be granulated and subsequently used in construction. Metal could be used for production of alloys, etc.
For detailed information on the above products visit the pages of this section.

Decision Process

When we design the plasma equipment for treatment of your waste, we need to take into account the following information :
• What kind of waste do you have? (MSW, biomass, etc.)
• How much waste do you have? (Ton per year, ton per hour)
• What is their proximate analysis and ultimate analysis?
• What do you wish have at the exit (What is your goal):
- Do you wish to dispose of waste?
- Do you wish to convert your waste to the by-products (Syngas and inert slag)?
- Do you wish to get an energy?


Your possibility

When you order plasma equipment for the treatment of your waste, you need to take in the following information :
• HTT's technology can be used to convert Waste to Energy
• HTT's technology can be used to obtain by-products during waste-treatment which can be used in a variety of processes and applications
• HTT's technology can be used to increase combustion efficiency of coal fuel
• HTT's technology can be used to improve environmental performance of power plants and incinerators

Our Values

Fostering of environment of trust and mutual respect
Conduct business with uncompromising integrity
Encouraging open communication and dialogue to achieve common goals
Promoting of environment, where achievement and knowledge are valued and rewarded

Municipal Solid Waste Treatment

Mass Energy Balance



For humidity of MSW = 20%. Plasma furnaces with productivity 1000 kg her hour have plasma arc torches with the power up to 840kW. From 1000 kg of MSW with humidity of 20% the Plasma Furnace allows to receive 1818 kg of syngas with heating value approximately 20,870 MJ (up to 5,800 kWh). Composition of syngas include CO, H2 and other gases (N2+CO2+H2O+SO…). Also it is possible to receive up to 130 kg of inert slag.

Environment protection

Plasma systems are safe for the work environment and for the atmosphere! The amount of toxic components in the emissions is so low that it meets and exceeds international standards.

The harmful emissions of regulated by the United States Environmental Protection Agency (“USEPA”) include sulfur dioxide (SO2), hydrogen chloride (HCL), carbon monoxide (CO), nitric oxides (NOx), particulates (PM), volatile organic compounds (VOCs) and hazardous air pollutants (HAPs). HAPs include chlorinated hydrocarbons (dioxins) and heterocyclic organic compound (furan).
HTT's plasma furnaces have advanced control and monitoring systems of emission with sensor at different stages of waste treatment and syngas cleaning process. We complete our monitoring system with gas analysis equipment which guarantee absence of harmful emissions in an atmosphere.




We offer ecologically clean plasma technology
